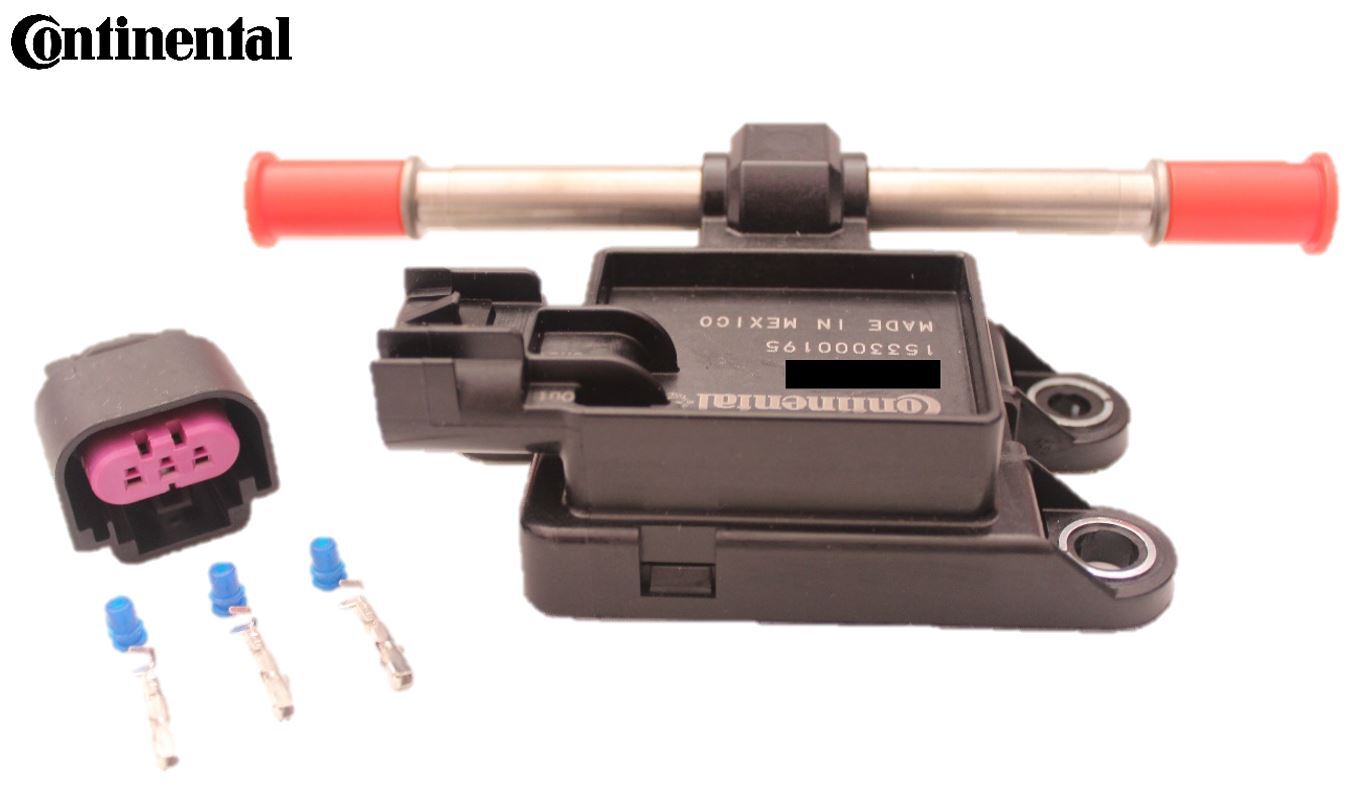

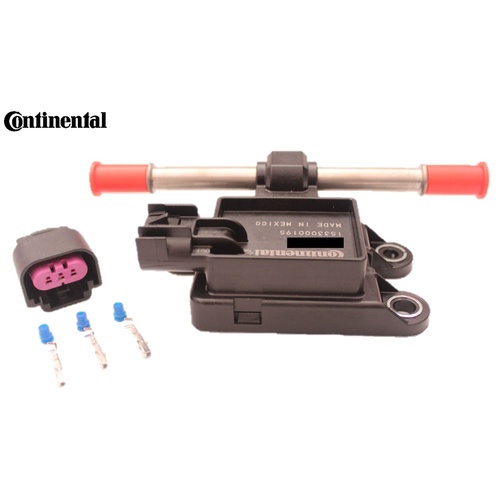

Genuine GM / AC Delco / Continental Fuel Composition Sensor. Used in flex fuel application to measure ethanol content for various programmable ECUs.



This is the full body version that has provisions to mount the unit to your chassis and has ample space to disconnect the fuel connector with your fingers, unlike the cheap narrow versions.



Unit to be installed on the return line of your fuel system. You'll require 3/8" fuel quick disconnect connector to suit your setup.



The pack includes;

1 x Genuine GM / AC Delco / Continental Fuel Composition Sensor

1 x Wiring connector and clip

3 x Crimp on terminals (accepts 0.5mm2 wire CSA) and water seals



Wiring, labels are etched on the unit;

VCC - Power (+12V, normally attained from your ECU output)

GND - Signal Ground (to ECU signal ground)

OUT - Signal (to ECU digital pulsed input, may require pull up resistor depending on what ECU you have)

**For calibration data, refer to 'installation manual' section**



Warranty;

Manufacturer's warranty. Professional installation only. Damage to the unit from excessive vibration, incorrect installation, incorrect crimping, incorrect wiring or abuse will deem any warranty to be null and void.



(50IGNFLEXSENSOR)

SKU 50IGNFLEXSENSOR
Brand Continental
Shipping Weight 0.2000kg
Shipping Width 0.120m
Shipping Height 0.140m
Shipping Length 0.100m
Shipping Cubic 0.001680000m3
Unit Of Measure ea
