Nissan Quest 125A V2 Alternator Upgrade Mounting Kit for RB20 RB25 RB26 & RB30 DOHC/SOHC

***** Limited edition new release anodizing color - Titanium Grey *****

Increased your electrical demand? Running big fuel and ignition system? Or Perhaps running a fully sick sound system… whichever it is, you will need an alternator upgrade to keep up with your electrical demand.

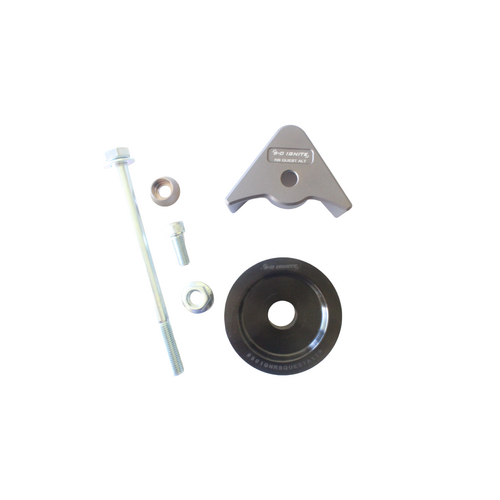

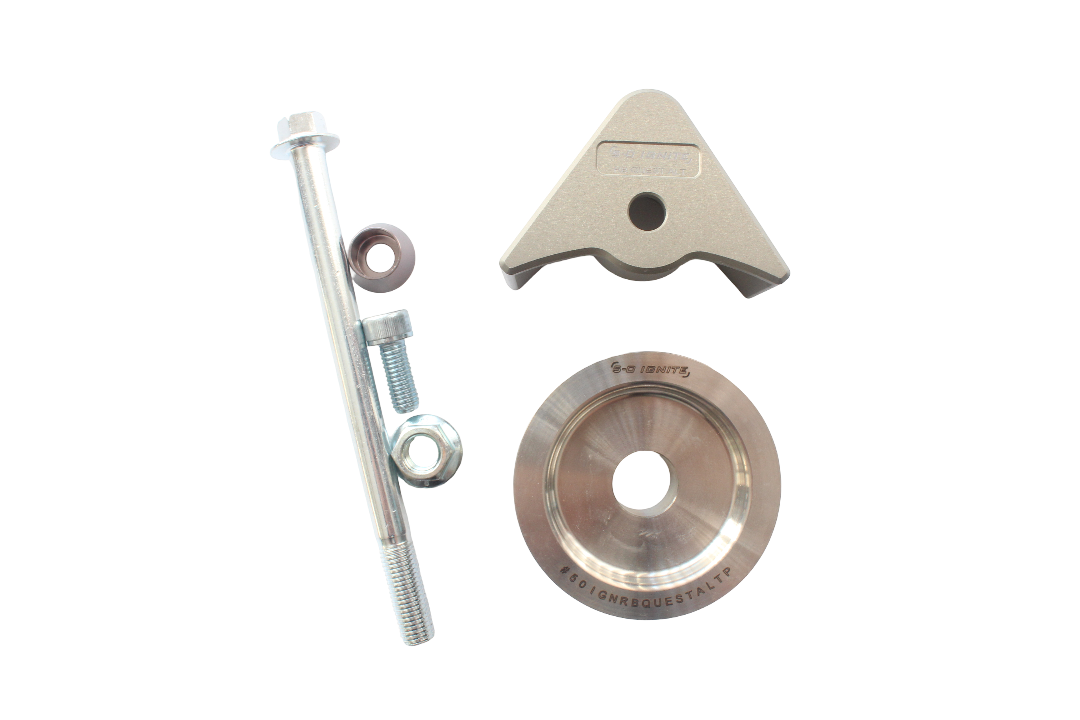

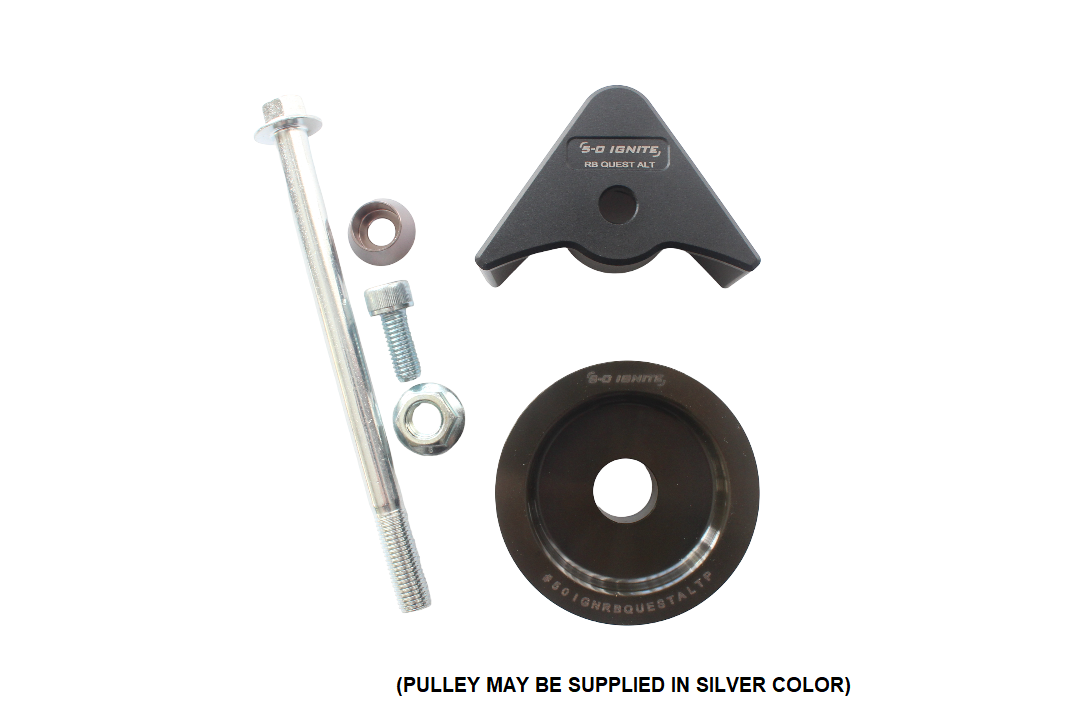

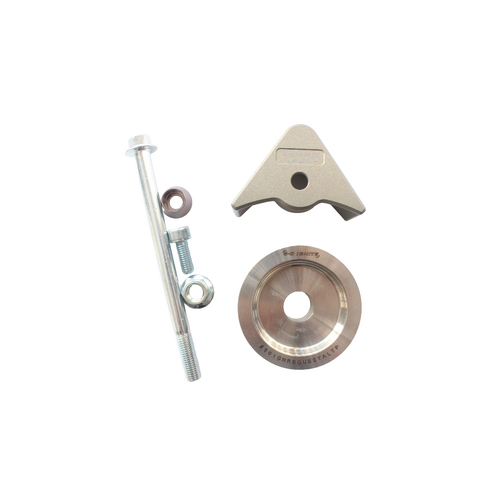

✔ The V2 kit comes with a replacement hard-wearing stainless steel alternator pulley for the perfect belt alignment and a slicker looking top adaptor bracket.

✔ Far surpasses OEM RB alternator current delivery (80A nominal on the stock RB alternator)

✔ Bolt-on, simple and no-fuss CNC Billet aluminium 6061 mounting adapter.

✔ High tensile fasteners.

✔ Utilises OEM RB belt adjuster and bracket ensuring that belt tensioning works and functions like OEM without jamming.

✔ Full OEM belt adjusting range.

✔ Retains OEM alternator wiring harness and connector (R32, M6 ring terminal to be replaced with M8 ring terminal).

!  Alternator NOT supplied – Mounting Kit Only. We use and recommend the following aftermarket Nissan Quest alternator to ensure correct fitment without further modifications and can be easily purchased online elsewhere at good prices;

Brand:                         TYC

Part No.:                      2-13821 (brand new aftermarket unit, not refurbished)

OEM Part No.:            231007B000R (1999-2002 Nissan Quest VG33E)

!  RB30 SOHC - You need to use DOHC crank pulley to utilise multi-ribbed belt

!  Components from OEM RB alternator that are required to be transferred to the Nissan Quest alternator (refer to installation manual):

• Split Pin (otherwise, the split pin on the Quest alternator can be drilled out to 10mm)
• Main Bolt Retaining Nut
• Main Bolt Spacer Round Bar

!  Alternator main bolt hole requires to be drilled/enlarged to 10mm diameter (refer to installation manual).

!  Belt to use: 4PK880 Micro-V (RB26) or 4PK860 Micro-V (RB20/25) - may vary slightly if you're using aftermarket crank pulley and/or water pump pulley.

LS vs. Quest Alternator Comparison
