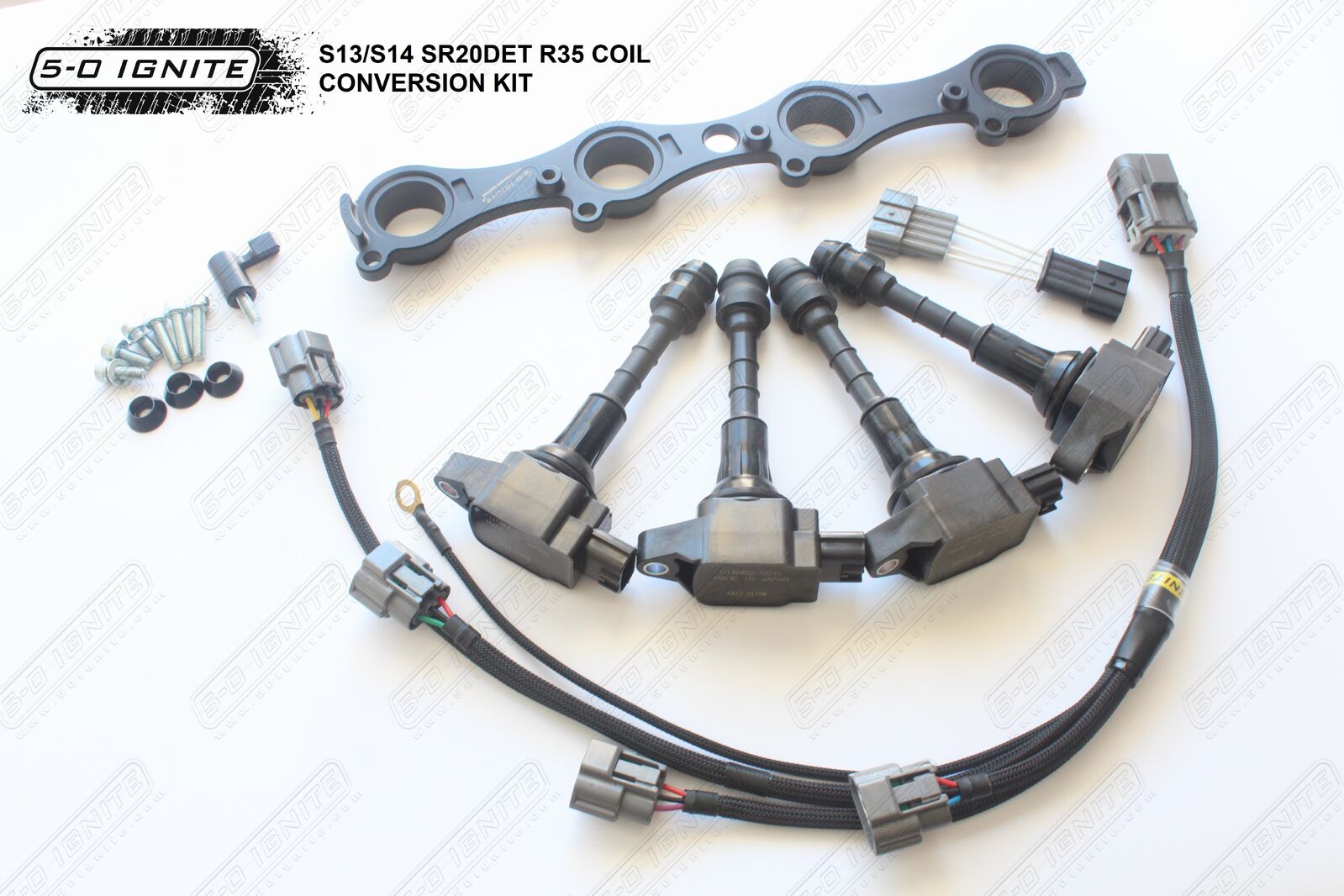

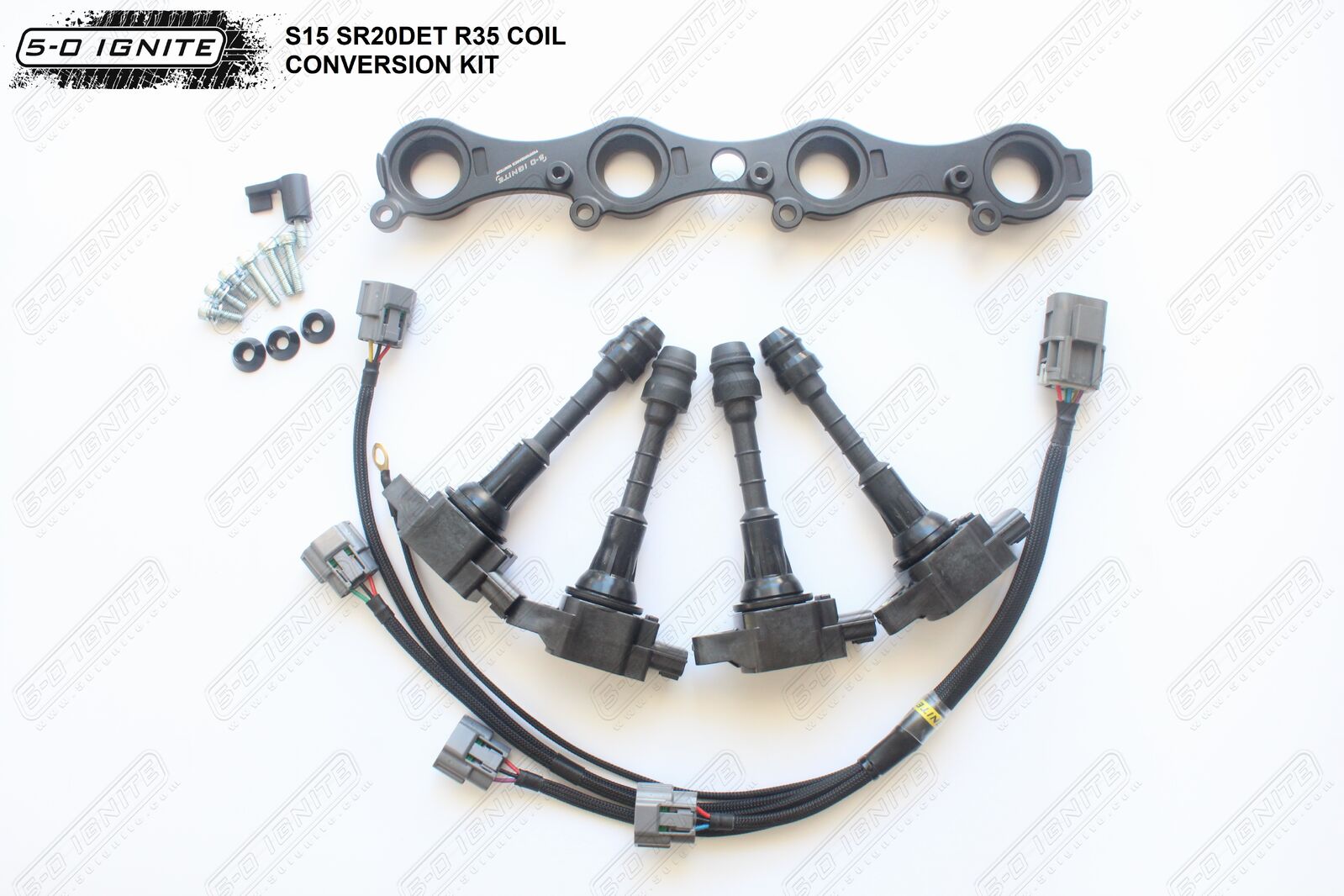

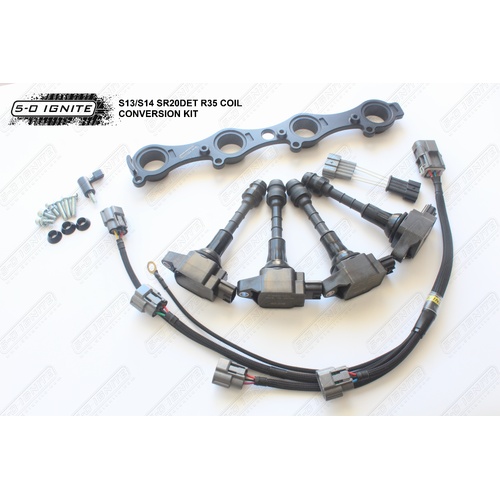

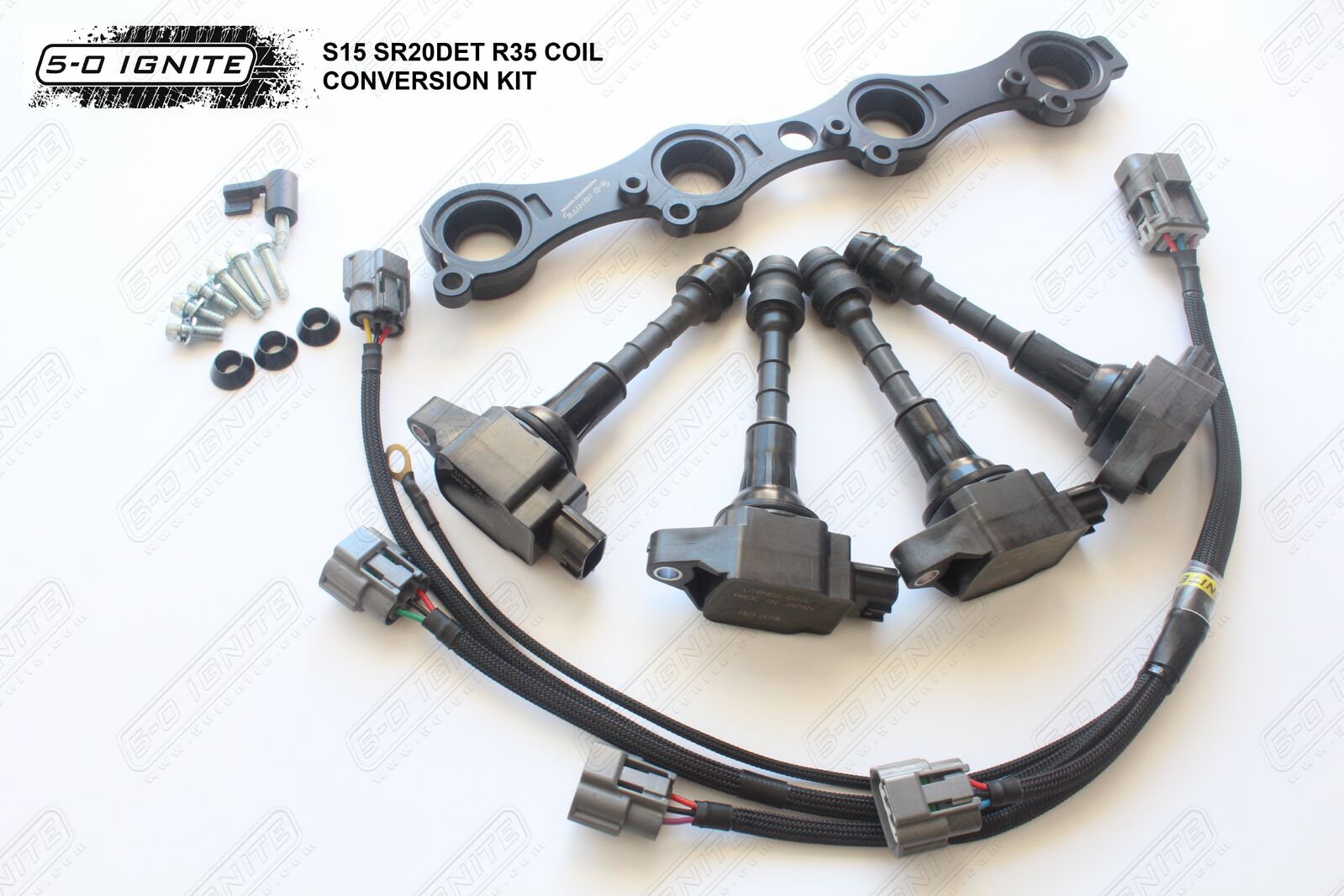

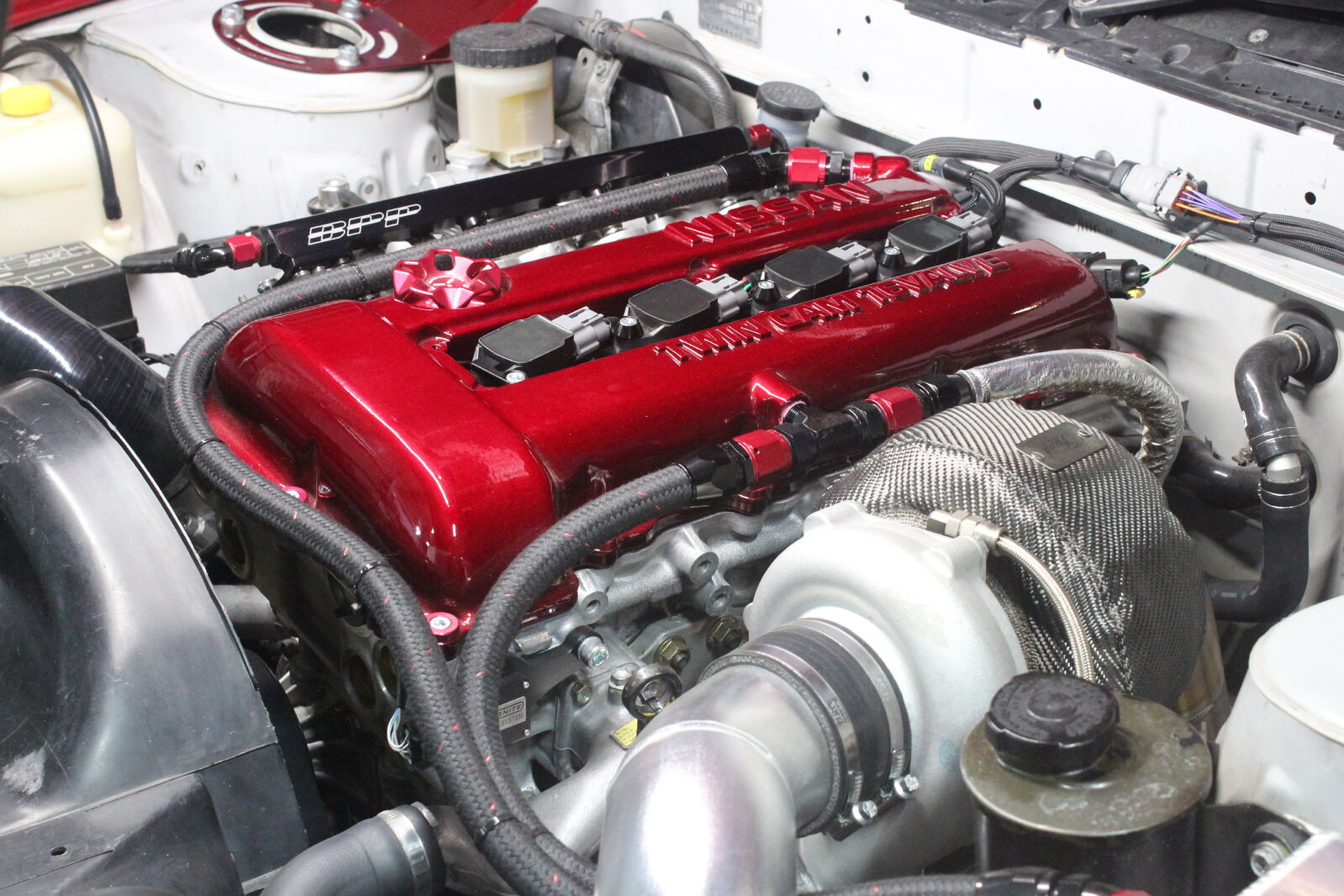

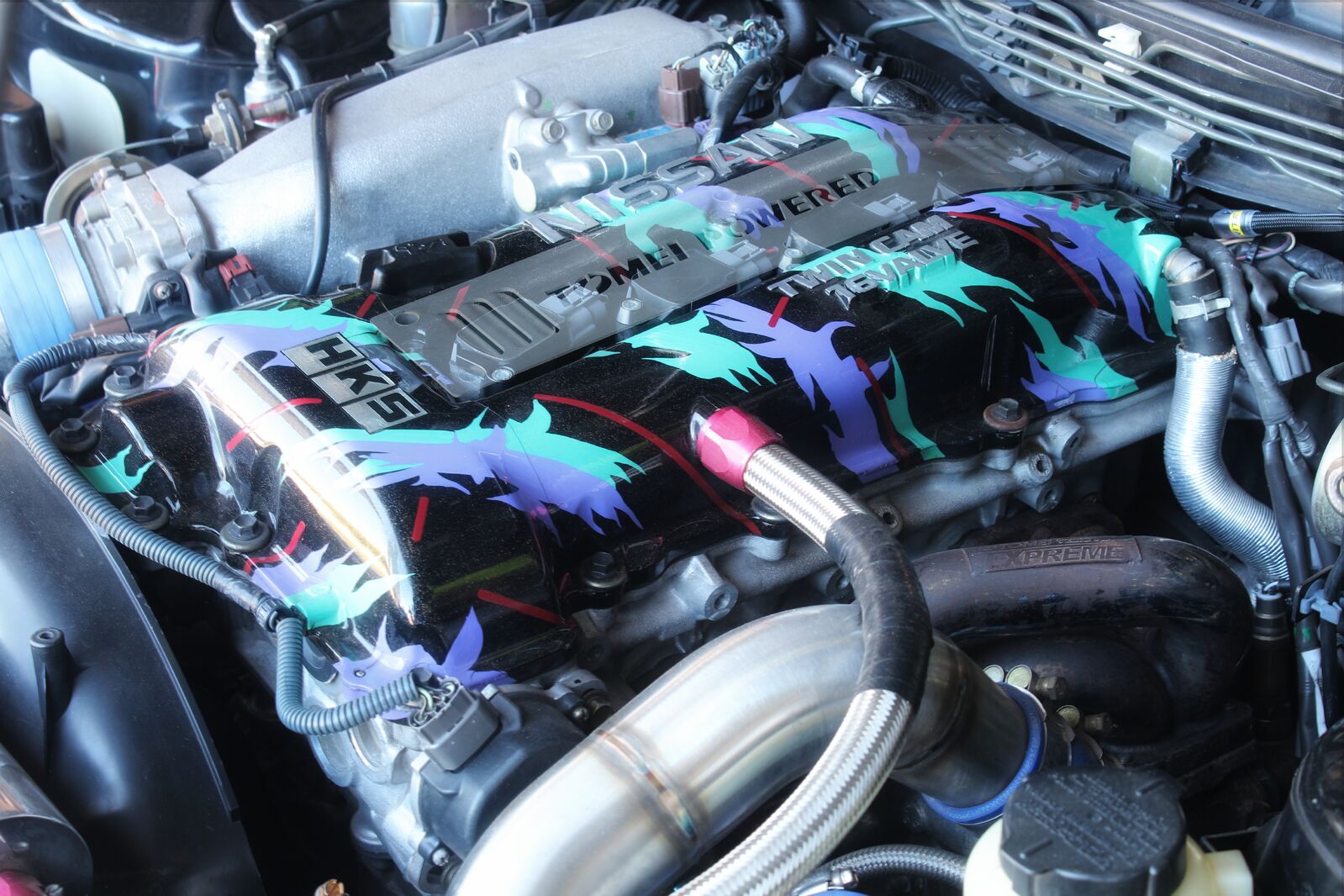

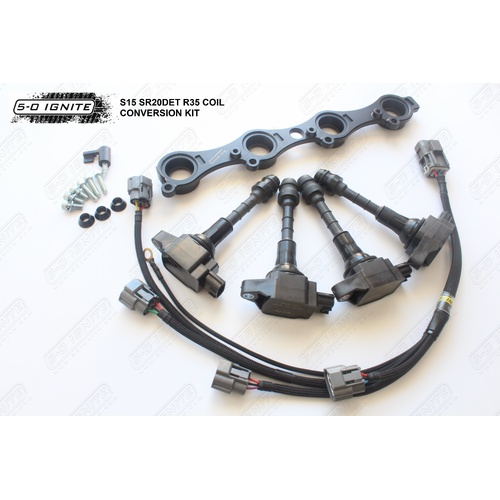

VR38 R35 Coil Kit To Suit Nissan SR20DET - S13 S14 S15 (select your model from the drop down list).

This is the ultimate 'go-to' plug and play coil upgrade kit on the market. Don't be fooled with other cheaper kits on the market that does not fit under the valley cover, does not seal the spark plug bore, utilizes the incorrect stalk or, worse, counterfeit coils. We don't go halfway with the design, we offer you the best!

What differentiates us from other competitors;

✔ True Bolt On - 100% Plug and Play for effortless installation.

✔ Genuine Hitachi VR38 R35 GTR coil packs.

✔ Billet aluminium 6061 mounting bracket with a neat cylinder 1 coil retention system.

✔ Custom triple sealing system on mounting adaptor and coil stalk to stop moisture/debris getting into the spark plug bore (vented bonnet friendly).

✔ Rigid coil stalk that meets or exceeds OEM standard for dielectric strength and dimensionally stable at all operating temperature retaining the spring and resistor within.

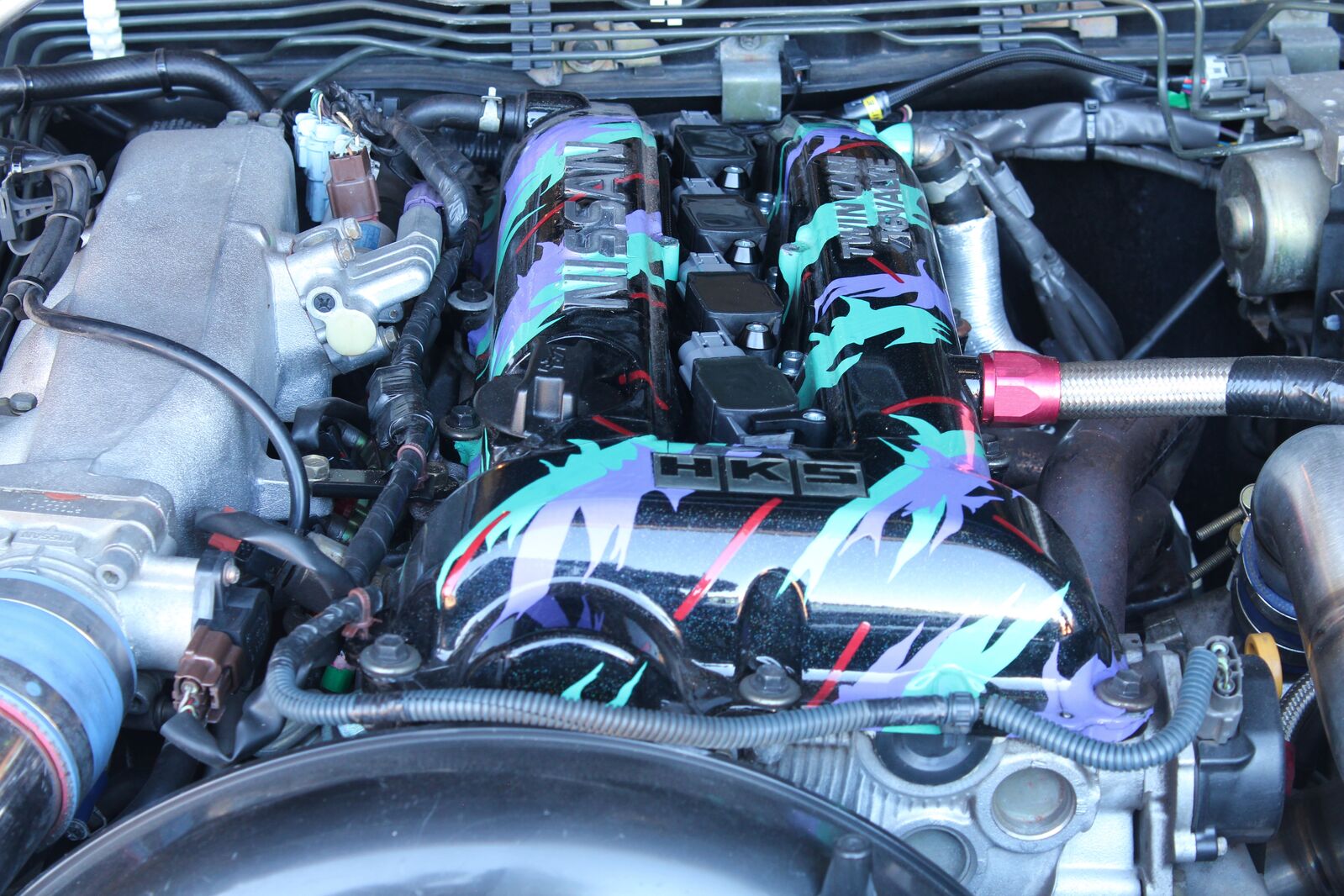

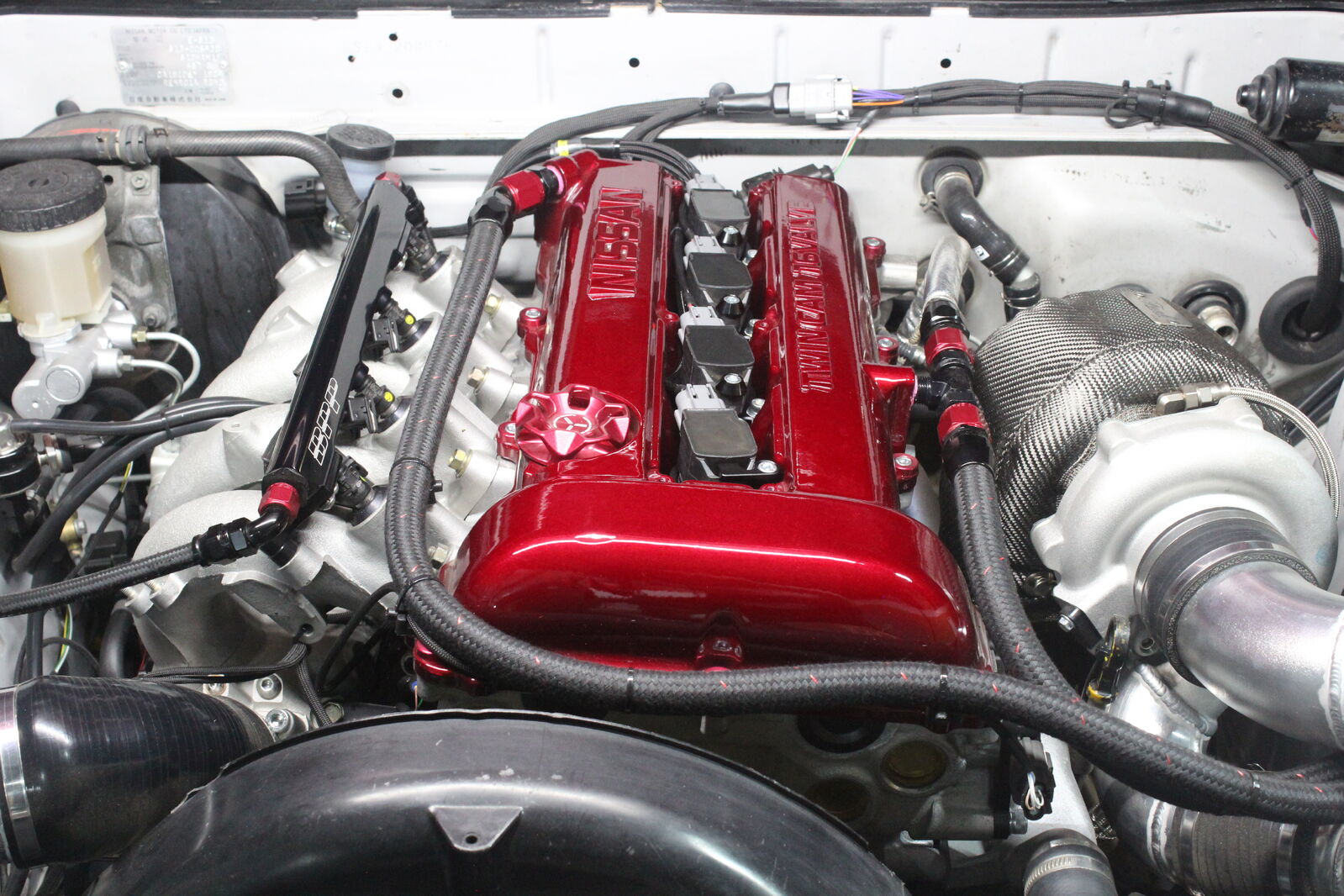

✔ Fits under the spark plug valley cover.

✔ Plug and play wiring harness (S13/14 kit comes with igniter bypass jumper) - heavy gauge, high temperature and chemical resistant Teflon F.E.P wiring harness constructed with nylon sleeving and dual wall heat shrink.

✔ Genuine connectors.

✔ Professionally crimped terminals.

!  Cylinder 1 coil mounting tab requires to be cut (1 minute job with a saw), refer to the installation guide.

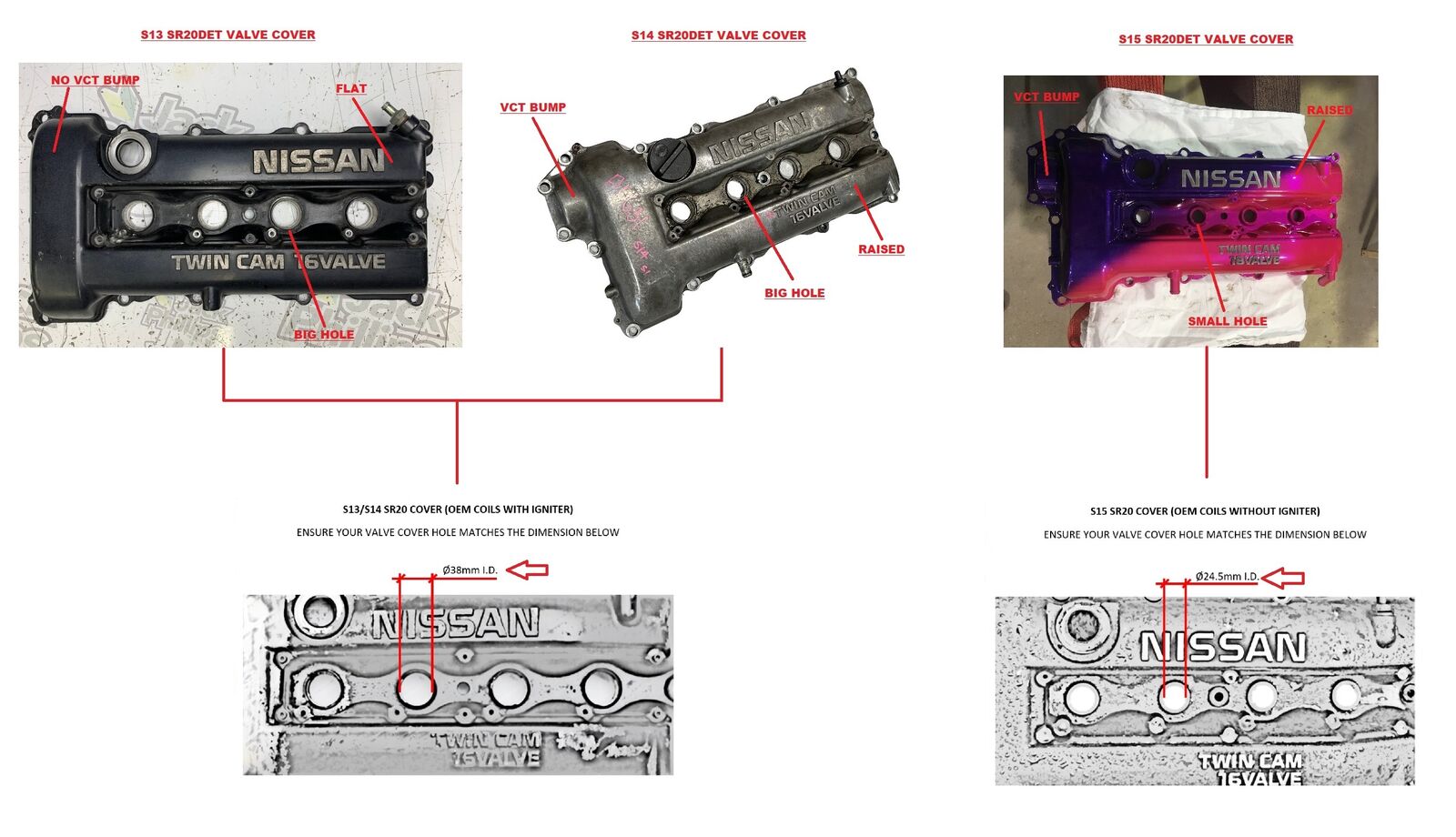

!  Choose the correct kit to suit your valve cover (refer to the image above). S13/14 valve cover have 'big' spark plug tube hole. S15 valve cover have 'small' spark plug tube hole.

!  Known supported ECUs: Almost all modern aftermarket ECUs that allows you to configure ignition dwell time. Will not run well on stock ECU.

!  Check up tune on your vehicle is highly recommended. Depending how old/weak your previous coils are, our testing shows an advancement of the ignition base timing by installing these powerful coils.

!  To maximise its performance, the ignition dwell time table for the R35 GTR coil is provided under the 'installation guide' tab. Will not run properly with OEM SR20DET coil dwell time.

!  We do NOT sell individual components separately due to the custom components and fitment.

!  We may combine two ignition coils into one box to save on international shipping (reduced volumetric weight).

Shipping is available worldwide, trackable and insured.

Please note that we do not sell and recommend the use of counterfeit coil packs. Counterfeit products harm the automotive industry and are a hazard to your engine/safety. Be cautious when a seller uses words like “-style” or “-equivalent” to pass on cheap counterfeit products that will not perform.

We do not incorporate a wire loop in our harnesses for use with an inductive timing light as our experience proves it to be an unreliable source. To set ignition base timing, we recommend the use of coil on plug extension lead (such as DAT-Equipment TE010 or the like) to latch your inductive clamp onto for a much more reliable reading.

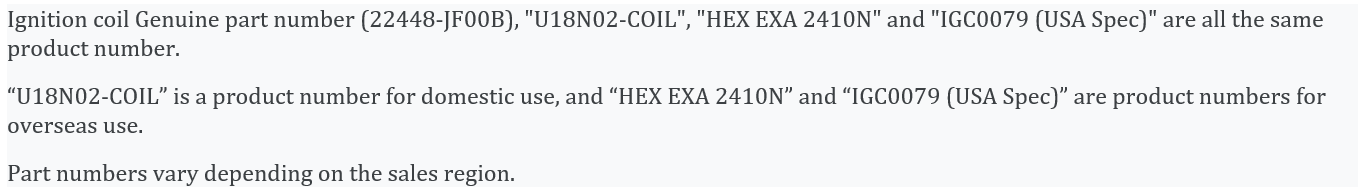

R35 GTR Coil Corresponding Part Numbers

Nissan: 22448-JF00B (Hanshin, Hitachi Automotive)

Hitachi: IGC0079, HEX EXA-2410N, U18N02-COIL

Verification From Hitachi:

http://www.hitachi-autoparts.co.jp/products/pdf/ignition_coil_190717.pdf

http://www.hitachi-automotive.co.jp/en/products/aftpro/parts_search/pnc.html?la=0

Our SR20DET Coil Kit Range:

S13 S14 R8 Coil Conversion Kit: https://www.50ignite.com/nissan-silvia-s13-s14-180sx

S15 R8 Coil Conversion Kit: https://www.50ignite.com/nissan-silvia-s15

SR20DET Cam Trigger for ULTIMATE Ignition Accuracy: https://www.50ignite.com/nissan-sr20det-rwd-cam-trigger-max-kit

S13 S14 S15 SR20DET Coil Kit | VR38 R35 Coil Kit | SR20DET Coil Upgrade | SR20 Coil Kit | SR20 R35 Coil Kit
